Drake
TR7
and R7
AUX7 Band Modules
For those who have
the installed
AUX7 board in their TR7 or R7 you can now fill in those blank positions
with your most frequently used bands. Avoids having to use the UP
and DOWN
buttons on the radio to cycle through the 500KHz band segments outside
the normal band selections.

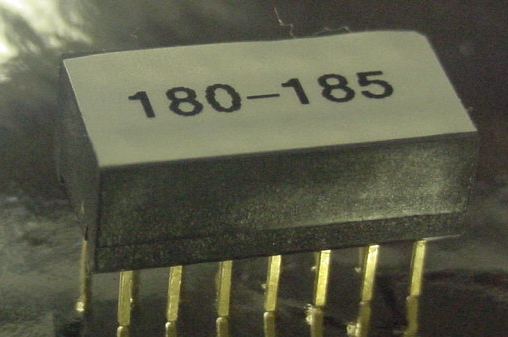

Each band module
is made from high impact glass-filled nylon and fully enclosed.
Pins are GOLD plated to prevent corrosion in even the
most adverse environments. Modules are built per order and are
tested on a custom built fixture that places the modules under the same
operating parameters as in the Drake 7-Line equipment.
Considering there are 63 different module types I can not prebuild
them all. However, as time goes on I'm sure some frequency ranges
will be more common than others. In those cases small stock
levels will be prepared. I will do my best to keep construction
turn-around-time to a few days on every order.
Simple to Install
Installation is
straight forward
and every attempt was made for ease of installation. The
user must have an AUX7 board and the original Drake manual on its
removal and installation. I will supply an instruction
manual which explains how to install the modules onto the AUX7
board. All modules for the frequency bands above 1.5MHz, except
26.0 - 28.0MHz, are enabled for full transmit functionaility on the TR7
transceiver.

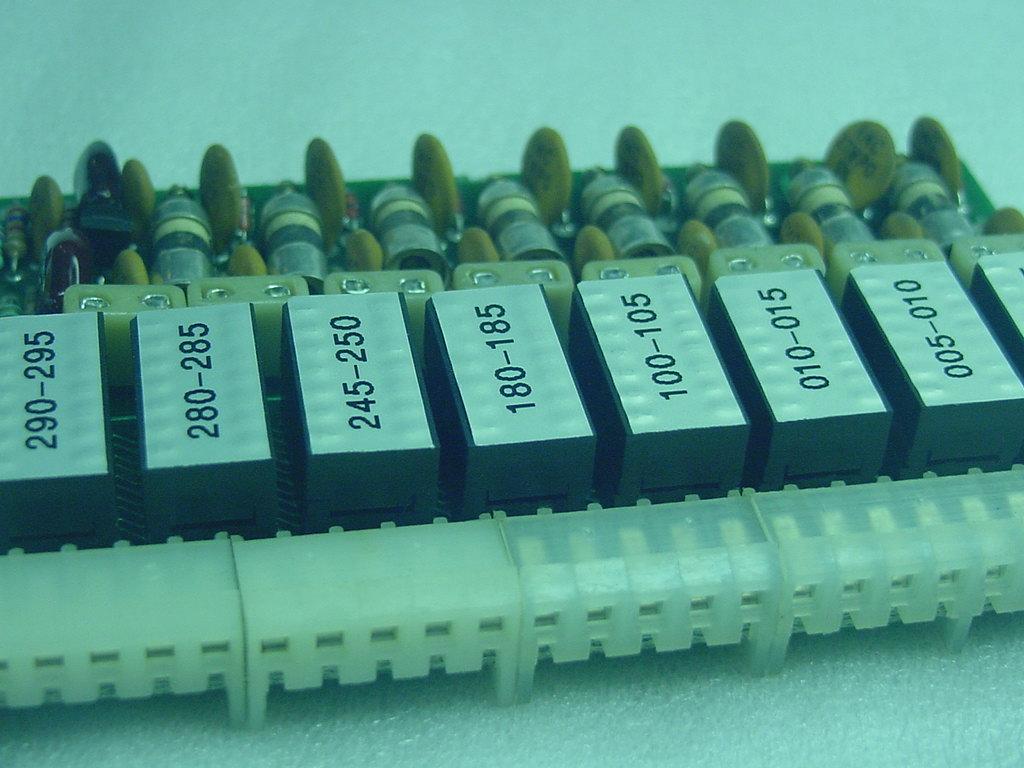

Band Module View
 |
Ordering
Please Order Using
these Part Numbers
| PART
NUMBER |
Used In |
Price (USD) |
| AX7-AAA-BBB |
TR7, TR7A & R7 |
$13.50 |
| AR7-AAA-BBB |
Low Frequency R7 Only |
$13.50 |
| AAA & BBB represent
the lower and upper frequency limits of the module. See On-Line
order table below for details on this numbering. Mail Orders must substitute the correct
numbers for AAA & BBB in the part numbers. |
All
products and parts are shipped at the rates shown below. There is
no
quantity limit for these rates. You can combine items from other
pages
on this site and all will ship together at this one rate! All
items shipped boxed.
| Destination | Method |
Cost (USD) |
| U.S.A. |
Priority Mail |
$5.35 |
| Canada & Mexico |
Priority Mail Flat Rate |
$12.95 |
| All Other Destinations |
Priority Mail Flat Rate |
$16.95 |
Send Check or Money Order (US Funds Only) to:
D.A. Buska Engineers LLC
4805 64th Avenue
Kenosha, WI
53144 U.S.A.
For immediate processing we accept on-line orders and payments through PayPal when using the Order Cart below. You can change the order quantity if desired when you view the cart during check out. This order cart can be used throughout the many pages on this site so it is not necessary to check-out until you have ordered everything you need.
| Part Number |
Range and Radio |
Add to Cart |
| AX7-000-005 |
0.0
-
0.5 MHz TR7 |
|
| AX7-005-010 | 0.5
-
1.0 MHz TR7 |
|
| AX7-010-015 | 1.0
-
1.5 MHz TR7 |
|
| AX7-015-020 | 1.5
-
2.0 MHz TR7 or R7 |
|
| AX7-020-025 | 2.0
-
2.5 MHz TR7 or R7 |
|
| AX7-025-030 | 2.5
-
3.0 MHz TR7 or R7 |
|
| AX7-030-035 | 3.0 - 3.5 MHz TR7 or R7 | |
| AX7-035-040 | 3.5 - 4.0 MHz TR7 or R7 | |
| AX7-040-045 | 4.0 - 4.5 MHz TR7 or R7 | |
| AX7-045-050 | 4.5 - 5.0 MHz TR7 or R7 | |
| AX7-050-055 |
5.0
-
5.5 MHz TR7 or R7 (60M Band) |
|
| AX7-055-060 |
5.5 - 6.0 MHz TR7 or R7 | |
| AX7-060-065 | 6.0 - 6.5 MHz TR7 or R7 | |
| AX7-065-070 | 6.5 - 7.0 MHz TR7 or R7 | |
| AX7-070-075 | 7.0 - 7.5 MHz TR7 or R7 | |
| AX7-075-080 | 7.5 - 8.0 MHz TR7 or R7 | |
| AX7-080-085 | 8.0 - 8.5 MHz TR7 or R7 | |
| AX7-085-090 | 8.5 - 9.0 MHz TR7 or R7 | |
| AX7-090-095 | 9.0 - 9.5 MHz TR7 or R7 | |
| AX7-095-100 | 9.5 - 10.0 MHz TR7 or R7 | |
| AX7-100-105 |
10.0
-
10.5 MHz TR7 or R7 (30M Band) |
|
| AX7-105-110 | 10.5 - 11.0 MHz TR7 or R7 | |
| AX7-110-115 | 11.0 - 11.5 MHz TR7 or R7 | |
| AX7-115-120 | 11.5 - 12.0 MHz TR7 or R7 | |
| AX7-120-125 | 12.0 - 12.5 MHz TR7 or R7 | |
| AX7-125-130 | 12.5 - 13.0 MHz TR7 or R7 | |
| AX7-130-135 | 13.0 - 13.5 MHz TR7 or R7 | |
| AX7-135-140 | 13.5 - 14.0 MHz TR7 or R7 | |
| AX7-140-145 | 14.0 - 14.5 MHz TR7 or R7 | |
| AX7-145-150 | 14.5 - 15.0 MHz TR7 or R7 | |
| AX7-150-155 |
15.0 - 15.5 MHz TR7 or R7 | |
| AX7-155-160 | 15.5 - 16.0 MHz TR7 or R7 | |
| AX7-160-165 | 16.0 - 16.5 MHz TR7 or R7 | |
| AX7-165-170 | 16.5 - 17.0 MHz TR7 or R7 | |
| AX7-170-175 | 17.0 - 17.5 MHz TR7 or R7 | |
| AX7-175-180 | 17.5 - 18.0 MHz TR7 or R7 | |
| AX7-180-185 | 18.0
-
18.5 MHz TR7 or R7 (17M Band) |
|
| AX7-185-190 | 18.5 - 19.0 MHz TR7 or R7 | |
| AX7-190-195 | 19.0 - 19.5 MHz TR7 or R7 | |
| AX7-195-200 | 19.5 - 20.0 MHz TR7 or R7 | |
| AX7-200-205 | 20.0 - 20.5 MHz TR7 or R7 | |
| AX7-205-210 | 20.5 - 21.0 MHz TR7 or R7 | |
| AX7-210-215 | 21.0 - 21.5 MHz TR7 or R7 | |
| AX7-215-220 | 21.5 - 22.0 MHz TR7 or R7 | |
| AX7-220-225 | 22.0 - 22.5 MHz TR7 or R7 | |
| AX7-225-230 | 22.5 - 23.0 MHz TR7 or R7 | |
| AX7-230-235 | 23.0 - 23.5 MHz TR7 or R7 | |
| AX7-235-240 | 23.5 - 24.0 MHz TR7 or R7 | |
| AX7-240-245 | 24.0 - 24.5 MHz TR7 or R7 | |
| AX7-245-250 | 24.5
-
25.0 MHz TR7 or R7 (12M Band) |
|
| AX7-250-255 | 25.0 - 25.5 MHz TR7 or R7 | |
| AX7-255-260 | 25.5 - 26.0 MHz TR7 or R7 | |
| AX7-260-265 | 26.0
-
26.5 MHz TR7 or R7 (Transmit Disabled) |
|
| AX7-265-270 | 26.5
-
27.0 MHz TR7 or R7 (Transmit Disabled) |
|
| AX7-270-275 | 27.0
-
27..5 MHz TR7 or R7 (Transmit Disabled) |
|
| AX7-275-280 | 27.5
-
28.0 MHz TR7 or R7 (Transmit Disabled) |
|
| AX7-280-285 | 28.0 - 28.5 MHz TR7 or R7 | |
| AX7-285-290 | 28.5 - 29.0 MHz TR7 or R7 | |
| AX7-290-295 | 29.0 - 29.5 MHz TR7 or R7 | |
| AX7-295-300 | 29.5 - 30.0 MHz TR7 or R7 | |
| AR7-000-005 |
0.0
-
0.5 MHz R7 |
|
| AR7-005-010 |
0.5
-
1.0 MHz R7 |
|
| AR7-010-015 |
1.0
-
1.5 MHz R7 |
